RUD Tensioning devices.

Load securing: Secure tensioning of lashing chains.

Only a correctly tensioned lashing chain can reliably fulfil its function. RUD lashing chains are tensioned by rotating the tensioning element. For this, the tensioning elements must be positioned in such a way that they are not at the edges when in use.

During inclined lashing, the lashing leg may only be pre-tensioned to such an extent that the chain no longer sags. As far as tensioning elements are concerned, a distinction is made between two types: ratchet spindle and bar spindle tensioners.

The ICE-CURT ratchet spindle tensioner and the ICE-CURT-K bar spindle tensioner have proved themselves admirably here. Both offer users plenty of advantages. They exceed the material strength requirements of EN 12195-3 by far, whereby the bar spindle tensioner has been optimised for direct lashing.



Both products are easy to clean and grease, as well as easy to handle even when wearing gloves. In addition, they have an innovative, practical mechanical locking device and are especially light and sturdy thanks to their innovative forged design. The ICE-CURT tensioning elements have a patented preparation for an anti-theft device which can be padlocked to secure against theft (type ABUS 85/40HB or ABUS 85/30 for size 6). Both are equipped with the RUD ID-Point®.

ICE-CURT-GAKO (ICE-CURT ratchet tensioner).

  • Clevis connection for direct connection to the chain.
  • Suitable both for top over and direct lashing.

product details

ICE-CURT-SL (ICE-CURT ratchet tensioner).

  • Shortening link mounted captive – for simple chain shortening.
  • Suitable both for top over and direct lashing.

product details

ICE-CURT-K-GAKO (ICE-CURT-K bar spindle tensioner).

  • Clevis connection for direct connection to the chain.
  • Especially suitable for direct lashing.

product details

ICE-CURT-K-SL (ICE-CURT-K bar spindle tensioner).

  • Shortening link mounted captive – for simple chain shortening.
  • Especially suitable for direct lashing.

product details

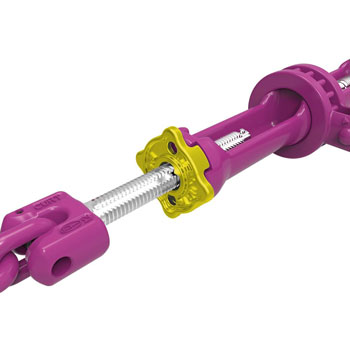

The ICE-CURT tensioning elements have a magnetic locking device to prevent loosening:

Safe bet. The RUD App "Lashing means calculation".

Would you like to know within a few minutes how to secure your current load ideally? With our free App, you'll be on the safe side. Just type in the specific facts like mass, lashing methode, transporting goods, inclination angle and friction factor - and you'll receive a detailed recommendation. Test it now!

product details
