Weldable lifting points.
RUD weldable lifting points: suitable for all common welding methods.
Weldable lifting points (weld-on points) are used in approximately 25 % of constructions. They are permanently connected to the load. The advantage: loosening the lifting point, e.g. when rotating and turning loads, is ruled out: in many applications, this is a clear bonus in terms of the safety. RUD weld-on points are suitable for every standard welding procedure. The weld-on blocks consist of an easy-to-weld material and the suspension eyes are made of drop-forged, high-strength tempered steel in a lightweight construction.
RUD weldable lifting points are designed for a dynamic load of at least 20,000 changes of load. They are tested with an overload of 50 %. Their WLLs range from 600 kg to 100 t., allowing them to offer four times the safety in every loading direction. In addition, all the load-bearing parts have been crack-tested and load-tested in accordance with EN 1677.
Looking for the right weldable lifting point?
Contact us nowW-ABA.
Indestructible: Weld-on point that can be loaded on all sides.
- Quadruple safety against breakage.
- Meets the requirements of DIN EN 1090 due to the circular fillet weld – no rust creep.
- Treated body, increasing wear resistance.
- Patented wear markings inside and out.
- Meets all the requirements for modern safety eyes.
- Attractive design.

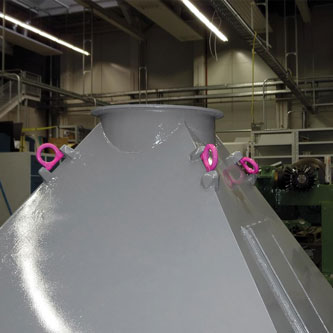

VRBS-FIX / VRBK-FIX.
VIP Load ring weldable FIX | VIP Load ring edge FIX.
- The ideal solution for split force introduction.
- No time-consuming alignment of the weld-on blocks to the ring link.
- Parts firmly connected through radial clamping springs: reduces the noise and keeps the weld-on blocks at a precisely defined distance during welding.
- The patented bearing system also allows a perfect WLL at up to 90° to the load ring plane of the 180°-swivelling ring lug – even under full load.
- No rusting: all-round HY weld.
or …
the VRBK-FIX now.WPP-S / WPP-B / WPP-VIP.
PowerPoint: weldable universal connection with many attachment options.
- Universal connection, eye connection, direct VIP chain connection (metric).
- Non-mix-up VIP connection for chains and eyes.
- WPP: 360° rotatable, 230° pivotable.
- Double ball bearing for tilting, rotating and turning under load.
- For combination with all conventional lifting means without an additional connecting element.
Product highlights from the RUD range.
Weld-on point that can be loaded on all sides
Product detailsW-ABA (weld-on point that can be loaded on all sides)
Load ring
Product detailsVRBS-FIX / VRBK-FIX (VIP load ring for welding Fix / VIP load ring for corners Fix)
Load ring
Product detailsVLBS / VLBS-U-LT (VIP load ring for welding / VIP load ring for low temperature -45°C)
Weldable excavator hook
Product detailsVABH-W / VCGH-S (Excavator hook, ready for welding)
Straight to the point – simple, convenient, safe: The new lifting point configurator from RUD.
Find the right lifting point for your specific lifting application quickly and easily. Various filter functions and animated 3D views ensure greater safety and the certainty that nothing has been overlooked. Share the results with your RUD expert or dealer and send an inquiry directly. In addition, you will receive valuable additional knowledge that will be available for your daily work.
